How to remove and inspect a CV Boot on the driveaxle of a Lexus ES300?

To remove and inspect a CV boot, first, remove it and mount it in a vise with wood-lined jaws. Check the CV joint for excessive play and smooth operation throughout the full range of motion. If a boot is torn, disassemble the joint, clean the components, and inspect for damage. To disassemble, cut the boot clamps, remove the clamps and boots, and remove the tripod joint snap-ring with snap-ring pliers. Use a hammer and brass punch to drive the tripod joint from the drive axle. Clean all components and inspect for wear. To reassemble, wrap the splines on the inner end of the axle shaft with tape, slide the clamps and boots onto the axle shaft, and install a new snap ring. Apply grease to the tripod assembly and inside the housing, insert the tripod into the housing, and pack the remainder of the grease around the tripod. Slide the boots into place, adjust the CV axle to standard length specifications, equalize the pressure in the boot, and tighten the boot clamps.

How to inspect the CV Boot on Lexus ES350?

With the vehicle on the ground and the front wheels pointed straight ahead, rock the steering wheel gently back and forth to check for excessive freeplay. Excessive freeplay may indicate worn front wheel bearings, main shaft yoke, intermediate shaft yoke, lower arm balljoint, steering system joint, or an out of adjustment or broken steering gear. Other symptoms such as excessive vehicle body movement over rough roads, swaying around corners, and binding when turning the steering wheel may indicate faulty steering or suspension components. Check the shock absorbers by pushing down and releasing the vehicle at each corner. If the vehicle does not come back to a level position within one or two bounces, the shocks/struts are worn and need to be replaced. Listen for squeaks and noises from the suspension components while bouncing the vehicle. Raise the vehicle with a floor jack and support it securely on jackstands. Check the tires for irregular wear patterns and proper inflation. Inspect the universal joint between the steering shaft and the steering gear housing for any damage or lubricant leakage. Check the steering linkage, tie-rod ends, and all suspension and steering components for looseness, damage, loose bolts, broken or disconnected parts, and deteriorated rubber bushings. Check the steering components for free movement, chafing, and binding while an assistant turns the steering wheel from side to side. Check the balljoints by attempting to move each lower arm up and down with a prybar to ensure there is no play. Replace any balljoint with play. Inspect the balljoint boots for damage and leaking grease. Replace the balljoints if they are damaged. Lastly, inspect the CV boots for tears, cracks, and loose clamps. Replace any boots with evidence of cracks or leaking lubricant.

Genuine Lexus CV Boot

Axle Boot

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

240 CV Boots found

View related parts

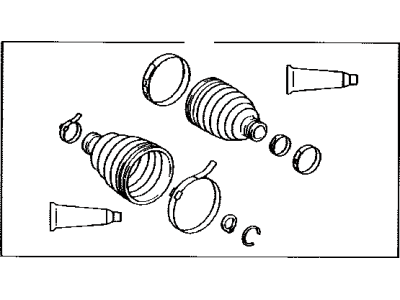

Lexus Boot Kit, Front Drive Shaft, In & Outboard
Part Number: 04428-0E060
$62.35 MSRP: $84.32
You Save: $21.97 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot, Boot Kit
- Position: Front
- Replaces: 04427-06300, 04427-0E030
Fits the following Lexus Models:
- ES350 | 2007-2011 | 6 Cyl 3.5L
- RX350 | 2010-2015 | STD | 6 Cyl 3.5L
- RX450h | 2010-2015 | STD | 6 Cyl 3.5L
View More
View related parts
Lexus Boot Kit, Front Drive Shaft, In & Outboard
Part Number: 04427-60080
$76.99 MSRP: $102.45
You Save: $25.46 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Front
- Replaced by: 04427-60142
Fits the following Lexus Models:
- GX470 | 2004-2009 | 8 Cyl 4.7L
View related parts
Lexus Front Drive Shaft Boot Kit
Part Number: 04428-0W070
$62.96 MSRP: $85.15
You Save: $22.19 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit, Front Drive Shaft, In & Outboard; Boot, Boot Kit
- Position: Front
Fits the following Lexus Models:
- ES300h | 2013-2014 | 6 Cyl 3.5L
- ES350 | 2010-2014 | 6 Cyl 3.5L
View related parts
Lexus Front Drive Shaft Boot Kit
Part Number: 04428-0W030
$60.44 MSRP: $77.32
You Save: $16.88 (22%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit, Front Drive Shaft, In & Outboard, LH
- Position: Driver Side
- Replaces: 04428-08080
Fits the following Lexus Models:
- ES350 | 2007-2011 | 6 Cyl 3.5L
View related parts
Lexus Boot Kit, Front Drive Shaft Inboard Joint
Part Number: 04438-08030
$32.24 MSRP: $42.89
You Save: $10.65 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit, Inner Boot
- Position: Front
Fits the following Lexus Models:
- RX330 | 2004-2006 | STD | 6 Cyl 3.3L, 6 Cyl 3.5L
- RX350 | 2007-2009 | STD | 6 Cyl 3.3L, 6 Cyl 3.5L
View related parts
Lexus Boot Kit, Front Drive Shaft Inboard Joint
Part Number: 04438-08130
$35.11 MSRP: $46.72
You Save: $11.61 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot, Inner Boot
- Position: Front
- Replaces: 04437-06110
Fits the following Lexus Models:
- ES300h | 2013-2018 | 6 Cyl 3.5L
- ES350 | 2007-2018 | 6 Cyl 3.5L
- RX350 | 2010-2015 | STD | 6 Cyl 3.5L
- RX450h | 2010-2015 | STD | 6 Cyl 3.5L
View More
View related parts
Lexus Front Drive Shaft Boot Kit
Part Number: 04427-30090
$122.96 MSRP: $167.65
You Save: $44.69 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit, Front Drive Shaft, In & Outboard; Boot, Boot Kit
- Position: Front
Fits the following Lexus Models:
- GS Turbo | 2017 | 6 Cyl 3.5L
- GS200t | 2016 | 6 Cyl 3.5L
- GS300 | 2018-2019 | 6 Cyl 3.5L
- GS350 | 2013-2020 | 6 Cyl 3.5L
- GS450h | 2013-2018 | 6 Cyl 3.5L
- IS Turbo | 2017 | LUX | 6 Cyl 3.5L
- IS200t | 2016 | LUX | 6 Cyl 2.5L, 6 Cyl 3.5L
- IS250 | 2014-2015 | LUX | 6 Cyl 2.5L, 6 Cyl 3.5L
- IS300 | 2016-2024 | LUX | 6 Cyl 2.5L, 6 Cyl 3.5L
- IS350 | 2014-2024 | LUX | 6 Cyl 2.5L, 6 Cyl 3.5L
View More
View related parts
Lexus Boot Kit, Front Drive Shaft, In & Outboard, LH
Part Number: 04438-0E010
$55.86 MSRP: $74.34
You Save: $18.48 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit
- Position: Driver Side
Fits the following Lexus Models:
- RX330 | 2004-2006 | STD | 6 Cyl 3.3L, 6 Cyl 3.5L
- RX350 | 2007-2009 | STD | 6 Cyl 3.3L, 6 Cyl 3.5L
View related parts
Lexus Front Drive Shaft Boot Kit
Part Number: 04427-60131
$53.11 MSRP: $70.68
You Save: $17.57 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit, Front Drive Shaft, In & Outboard; Boot Kit
- Position: Front
- Replaced by: 04427-60133
- Replaces: 04427-60130
Fits the following Lexus Models:
- GX460 | 2017-2023 | G, Z | 8 Cyl 4.6L
View related parts
Lexus Boot Kit, Front Drive Shaft Inboard Joint
Part Number: 04437-60040
$37.43 MSRP: $47.89
You Save: $10.46 (22%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Front
- Replaced by: 04437-60042
Fits the following Lexus Models:
- GX470 | 2004-2009 | 8 Cyl 4.7L
View related parts
Lexus Boot Kit, Front Drive Shaft, In & Outboard
Part Number: 04438-08080
$56.36 MSRP: $75.00
You Save: $18.64 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot, Boot Kit
- Position: Front
Fits the following Lexus Models:
- RX330 | 2006 | STD | 6 Cyl 3.5L
- RX350 | 2007-2009 | STD | 6 Cyl 3.5L
- RX400h | 2006-2008 | STD | 6 Cyl 3.3L
View More
View related parts
Lexus Front Drive Shaft Boot Kit
Part Number: 04438-60021
$77.36 MSRP: $102.95
You Save: $25.59 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit, Front Drive Shaft
- Position: Front
- Replaced by: 04427-60121
Fits the following Lexus Models:
- LX470 | 1998-2005 | 8 Cyl 4.7L
View related parts
Lexus Front Drive Shaft Boot Kit
Part Number: 04427-06540
$110.69 MSRP: $149.69
You Save: $39.00 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit, Front Drive Shaft, In & Outboard, RH; Boot Kit
- Position: Passenger Side
Fits the following Lexus Models:
- ES300h | 2013-2018 | 6 Cyl 3.5L
- ES350 | 2013-2018 | 6 Cyl 3.5L
View related parts
Lexus Boot Kit, Front Drive Shaft, In & Outboard
Part Number: 04438-44051
$144.56 MSRP: $197.09
You Save: $52.53 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot, Outer Boot
- Position: Front
- Replaced by: 04438-44052
- Replaces: 04438-44050
Fits the following Lexus Models:
- ES300 | 2002-2003 | 6 Cyl 3.0L, 6 Cyl 3.3L
- ES330 | 2004-2006 | 6 Cyl 3.0L, 6 Cyl 3.3L
View related parts
Lexus Boot Kit, Front Drive Shaft, In & Outboard, RH
Part Number: 04427-06300
$63.36 MSRP: $84.32
You Save: $20.96 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Position: Passenger Side
- Replaced by: 04428-0E060
Fits the following Lexus Models:
- ES350 | 2007-2009 | 6 Cyl 3.5L
View related parts
Lexus Boot Kit, INBOARD Joint
Part Number: 04438-08010
$32.24 MSRP: $42.89
You Save: $10.65 (25%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit, Front Drive Shaft Inboard Joint; Boot Kit, Inner Boot
- Replaces: 04437-08040
Fits the following Lexus Models:
- RX330 | 2004-2006 | STD | 6 Cyl 3.3L, 6 Cyl 3.5L
- RX350 | 2007-2009 | STD | 6 Cyl 3.3L, 6 Cyl 3.5L
- RX400h | 2006-2008 | STD | 6 Cyl 3.3L
View More
View related parts
Lexus Boot Kit, Front Drive Shaft, In & Outboard, LH
Part Number: 04438-0E020
$107.98 MSRP: $146.02
You Save: $38.04 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit
- Position: Driver Side
- Replaces: 04438-06140
Fits the following Lexus Models:
- RX330 | 2004-2006 | STD | 6 Cyl 3.3L
- RX350 | 2007 | STD | 6 Cyl 3.3L
View related parts
Lexus Boot Kit, Front Drive Shaft, In & Outboard, LH
Part Number: 04428-50010
$126.38 MSRP: $172.31
You Save: $45.93 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot, Boot Kit
- Position: Driver Side
Fits the following Lexus Models:
- LS460 | 2008-2011 | 8 Cyl 4.6L
- LS600hL | 2008-2011 | 8 Cyl 5.0L
View related parts
Lexus Front Drive Shaft Boot Kit
Part Number: 04428-0W060
$131.87 MSRP: $179.79
You Save: $47.92 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit, Front Drive Shaft, In & Outboard; Boot Kit
- Position: Front
Fits the following Lexus Models:
- RX350 | 2010-2015 | STD | 6 Cyl 3.5L
- RX450h | 2010-2015 | STD | 6 Cyl 3.5L
View related parts
Lexus Front Drive Shaft Boot Kit
Part Number: 04437-30130
$73.30 MSRP: $99.12
You Save: $25.82 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit, FR Drive S; Boot Kit, Inner Boot
- Position: Front
Fits the following Lexus Models:
- GS Turbo | 2017 | 6 Cyl 3.5L
- GS200t | 2016 | 6 Cyl 3.5L
- GS300 | 2018-2019 | 6 Cyl 3.5L
- GS350 | 2013-2020 | 6 Cyl 3.5L
- GS450h | 2013-2018 | 6 Cyl 3.5L
- IS Turbo | 2017 | LUX | 6 Cyl 3.5L
- IS200t | 2016 | LUX | 6 Cyl 2.5L, 6 Cyl 3.5L
- IS250 | 2014-2015 | LUX | 6 Cyl 2.5L, 6 Cyl 3.5L
- IS300 | 2016-2024 | LUX | 6 Cyl 2.5L, 6 Cyl 3.5L
- IS350 | 2014-2024 | LUX | 6 Cyl 2.5L, 6 Cyl 3.5L
View More

| Page 1 of 12 |Next >

1-20 of 240 Results

Lexus CV Boot Parts Questions & Experts Answers

Boot Kit, Front Drive Shaft Inboard Joint
04438-06090
Q: How to remove and inspect a CV Boot on the driveaxle of a Lexus ES300?
A:
To remove and inspect a CV boot, first, remove it and mount it in a vise with wood-lined jaws. Check the CV joint for excessive play and smooth operation throughout the full range of motion. If a boot is torn, disassemble the joint, clean the components, and inspect for damage. To disassemble, cut the boot clamps, remove the clamps and boots, and remove the tripod joint snap-ring with snap-ring pliers. Use a hammer and brass punch to drive the tripod joint from the drive axle. Clean all components and inspect for wear. To reassemble, wrap the splines on the inner end of the axle shaft with tape, slide the clamps and boots onto the axle shaft, and install a new snap ring. Apply grease to the tripod assembly and inside the housing, insert the tripod into the housing, and pack the remainder of the grease around the tripod. Slide the boots into place, adjust the CV axle to standard length specifications, equalize the pressure in the boot, and tighten the boot clamps.
Boot Kit, Front Drive Shaft, In & Outboard
04428-0E060
Q: How to inspect the CV Boot on Lexus ES350?
A:
With the vehicle on the ground and the front wheels pointed straight ahead, rock the steering wheel gently back and forth to check for excessive freeplay. Excessive freeplay may indicate worn front wheel bearings, main shaft yoke, intermediate shaft yoke, lower arm balljoint, steering system joint, or an out of adjustment or broken steering gear. Other symptoms such as excessive vehicle body movement over rough roads, swaying around corners, and binding when turning the steering wheel may indicate faulty steering or suspension components. Check the shock absorbers by pushing down and releasing the vehicle at each corner. If the vehicle does not come back to a level position within one or two bounces, the shocks/struts are worn and need to be replaced. Listen for squeaks and noises from the suspension components while bouncing the vehicle. Raise the vehicle with a floor jack and support it securely on jackstands. Check the tires for irregular wear patterns and proper inflation. Inspect the universal joint between the steering shaft and the steering gear housing for any damage or lubricant leakage. Check the steering linkage, tie-rod ends, and all suspension and steering components for looseness, damage, loose bolts, broken or disconnected parts, and deteriorated rubber bushings. Check the steering components for free movement, chafing, and binding while an assistant turns the steering wheel from side to side. Check the balljoints by attempting to move each lower arm up and down with a prybar to ensure there is no play. Replace any balljoint with play. Inspect the balljoint boots for damage and leaking grease. Replace the balljoints if they are damaged. Lastly, inspect the CV boots for tears, cracks, and loose clamps. Replace any boots with evidence of cracks or leaking lubricant.
