How to remove and install the oil cooler on Lexus RX330?

Drain the engine oil and coolant. Remove the left (front) exhaust manifold. Remove the hose retaining bracket nut and bracket, then disconnect the hoses from the oil cooler. On 2GR-FE engines, remove the center union bolt and take out the oil cooler and O-ring from the engine block. For 2GR-FKS engines, remove the two nuts and two bolts, then separate the oil cooler from the side engine block and discard the oil cooler gaskets. Ensure to install a new O-ring and plate washer or new gaskets based on your model. Tighten the nuts and bolts to the specified torque. Installation follows the reverse order of removal. Finally, add oil and coolant.

Genuine Lexus RX330 Oil Cooler

Engine Oil Cooler

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Oil Coolers found

View related parts

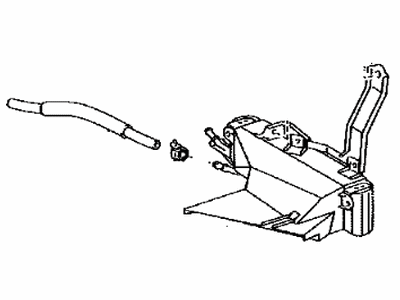

Lexus RX330 Oil Cooler Assembly
Part Number: 15710-31021
$940.43 MSRP: $1303.55
You Save: $363.12 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cooler Assy, Oil; Oil Cooler
- Replaces: 15710-31020
- Warranty: This genuine part is guaranteed by Lexus's factory warranty.
Fits the following Vehicles:
- 2006 Lexus RX330 | STD | 6 Cyl 3.5L | 2GRFE; GSU30L-AWAGKA, GSU30L-CWAGKA, GSU35L-AWAGKA, GSU35L-CWAGKA
View related parts
Lexus RX330 Cooler Sub-Assy, Power Steering Oil, NO.1
Part Number: 44402-48050
$309.94 MSRP: $429.62
You Save: $119.68 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Power Steering Cooler
- Warranty: This genuine part is guaranteed by Lexus's factory warranty.
Fits the following Vehicles:
- 2006 Lexus RX330 | STD | 6 Cyl 3.5L | 2GRFE; GSU30L-AWAGKA, GSU35L-AWAGKA
View related parts
Lexus RX330 Cooler Sub-Assy, Power Steering Oil, NO.1
Part Number: 44402-48041
$309.71 MSRP: $429.30
You Save: $119.59 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Power Steering Cooler
- Warranty: This genuine part is guaranteed by Lexus's factory warranty.
Fits the following Vehicles:
- 2004-2006 Lexus RX330 | STD | 6 Cyl 3.3L | 3MZFE; MCU33L-AWAGKA, MCU38L-AWAGKA
View related parts
Lexus RX330 Cooler Assy, Oil W/Hose
Part Number: 32920-48020
$683.99 MSRP: $948.10
You Save: $264.11 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 32920-0E011
- Warranty: This genuine part is guaranteed by Lexus's factory warranty.
Fits the following Vehicles:
- 2004-2006 Lexus RX330 | STD | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; GSU30L-AWAGKA, GSU35L-AWAGKA, MCU33L-AWAGKA, MCU38L-AWAGKA
View related parts
Lexus RX330 Cooler Assy, Oil W/Hose
Part Number: 32920-0E010
$683.99 MSRP: $948.10
You Save: $264.11 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: TOWING PACKAGE-3500LBS
- Replaced by: 32920-0E011
- Warranty: This genuine part is guaranteed by Lexus's factory warranty.
Fits the following Vehicles:
- 2004-2006 Lexus RX330 | STD | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; GSU30L-CWAGKA, GSU35L-CWAGKA, MCU33L-CWAGKA, MCU38L-CWAGKA
View related parts

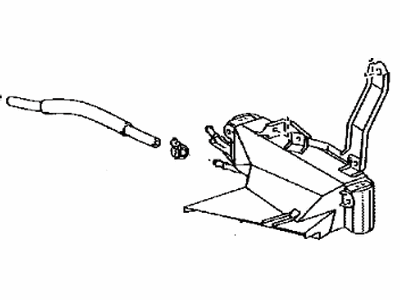

Lexus RX330 Oil Cooler Assembly
Part Number: 15710-31020
$940.43 MSRP: $1303.55
You Save: $363.12 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cooler Assy, Oil
- Manufacturer Note: TOWING PACKAGE-3500LBS
- Replaced by: 15710-31021
- Warranty: This genuine part is guaranteed by Lexus's factory warranty.
Fits the following Vehicles:
- 2006 Lexus RX330 | STD | 6 Cyl 3.5L | 2GRFE; GSU30L-AWAGKA, GSU30L-CWAGKA, GSU35L-AWAGKA, GSU35L-CWAGKA

Lexus RX330 Oil Cooler

Lexus RX330 Oil Cooler enables the engine lubricant to be kept at a safe temperature and the RX330 V6 is able to deliver power and reliability during regular operation and strenuous towing. The Oil Cooler directs the hot oil through a compact oil-to-water heat exchanger which connects to the radiator circuit to enable the Lexus cooling system to absorb the excess heat and still have the oil warm up quickly enough to reach the proper viscosity. The approach implies that the Oil Cooler regulates peak temperatures without delaying start-up lubrication, a balance that is carefully established to protect bearings, pistons, and other moving components that depend on a stable oil film. Throughout the production cycle, Lexus did not change its basic oil-to-water design to external air-to-oil units, thus all RX330 models have the same basic mechanism, albeit with thicker internal passages to provide slightly greater flow in later model years. The key issues are clogging or corrosion of the coolant side which may decrease the efficiency of the Oil Cooler or even make oil and coolant mix, hence RX330 owners will enjoy having a clean cooling system to maintain the efficiency of the Oil Cooler and increase Lexus durability.

Should you need to purchase new auto parts for your vehicle, we strongly suggest you consider the genuine Lexus RX330 Oil Cooler available on LexusPartsNow.com. Our OEM Lexus RX330 Oil Cooler come with the reassurance of the manufacturer's warranty, a hassle-free return policy, and speedy delivery service, all at affordable prices online. Feel free to shop with confidence!

Lexus RX330 Oil Cooler Parts Questions & Experts Answers

Oil Cooler Assembly
15710-31021
Q: How to remove and install the oil cooler on Lexus RX330?
A:
Drain the engine oil and coolant. Remove the left (front) exhaust manifold. Remove the hose retaining bracket nut and bracket, then disconnect the hoses from the oil cooler. On 2GR-FE engines, remove the center union bolt and take out the oil cooler and O-ring from the engine block. For 2GR-FKS engines, remove the two nuts and two bolts, then separate the oil cooler from the side engine block and discard the oil cooler gaskets. Ensure to install a new O-ring and plate washer or new gaskets based on your model. Tighten the nuts and bolts to the specified torque. Installation follows the reverse order of removal. Finally, add oil and coolant.
