Genuine Lexus Axle Shaft
Car Axle Shaft- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
385 Axle Shafts found

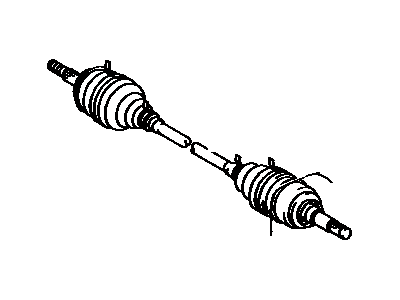

Lexus Front Drive Shaft Assembly
Part Number: 43430-60060$312.76 MSRP: $452.96You Save: $140.20 (31%)Product Specifications- Other Name: Shaft Assy, Front Drive, LH
- Position: Front
- Replaced by: 43430-60061
Lexus Front Drive Shaft Assembly
Part Number: 43430-60040$393.60 MSRP: $572.11You Save: $178.51 (32%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Shaft Assy, Front Drive, LH; Axle Assembly
- Position: Front
- Replaces: 43430-60020
Lexus Front Drive Shaft Assembly Right Hand
Part Number: 43410-06B80$389.70 MSRP: $566.74You Save: $177.04 (32%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Shaft Assembly Front Drive, Axle Assembly; Shaft Assembly Front Drive
- Position: Passenger Side
- Replaces: 43410-06A50, 43410-06780, 43410-0W180
Lexus Front Drive Shaft Assembly
Part Number: 43420-06B00$641.17 MSRP: $888.75You Save: $247.58 (28%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Shaft Assy, Front Drive, LH; Axle Assembly
- Position: Driver Side
- Replaces: 43420-0W210, 43420-06860
Lexus Shaft Assy, Front Drive, LH
Part Number: 43420-0E030$609.01 MSRP: $870.70You Save: $261.69 (31%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Axle Assembly
- Position: Driver Side
Lexus Rear Drive Shaft Assembly
Part Number: 42330-22091$672.35 MSRP: $931.96You Save: $259.61 (28%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Shaft Assy, Rear Drive, RH; Axle Assembly
- Position: Passenger Side
- Replaces: 42330-22090
Lexus Shaft Assy, Front Drive, LH
Part Number: 43420-0W210$641.17 MSRP: $888.75You Save: $247.58 (28%)Ships in 1-3 Business DaysProduct Specifications- Position: Driver Side
- Replaced by: 43420-06B00
Lexus Shaft Assy, Front Drive, RH
Part Number: 43410-0W180$396.20 MSRP: $566.74You Save: $170.54 (31%)Ships in 1-3 Business DaysProduct Specifications- Position: Passenger Side
- Replaced by: 43410-06B80
Lexus Front Drive Shaft Assembly
Part Number: 43420-30030$632.27 MSRP: $876.41You Save: $244.14 (28%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Shaft Assy, Front Drive, LH; Axle Assembly
- Position: Driver Side
Lexus Front Drive Shaft Assembly
Part Number: 43420-30040$632.27 MSRP: $876.41You Save: $244.14 (28%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Shaft Assy, Front Drive, LH; Axle Assembly
- Position: Driver Side
Lexus Front Drive Shaft Assembly
Part Number: 43410-0W340$863.75 MSRP: $1197.27You Save: $333.52 (28%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Shaft Assy, Front Drive, RH; Axle Assembly
- Position: Passenger Side
Lexus Shaft Assy, Front Drive, LH
Part Number: 43420-0E021$495.11 MSRP: $686.28You Save: $191.17 (28%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Axle Assembly
- Position: Driver Side
- Replaces: 43420-0E020
Lexus Rear Drive Shaft Assembly
Part Number: 42340-22181$656.75 MSRP: $910.34You Save: $253.59 (28%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Shaft Assy, Rear Drive, LH; Axle Assembly
- Position: Driver Side
- Replaces: 42340-22180
Lexus Front Drive Shaft Assembly
Part Number: 43410-06A50$396.20 MSRP: $566.74You Save: $170.54 (31%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Shaft Assy, Front Drive, RH
- Position: Passenger Side
- Replaced by: 43410-06B80
Lexus Front Drive Shaft Assembly
Part Number: 43410-30021$874.91 MSRP: $1212.74You Save: $337.83 (28%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Shaft Assy, Front Drive, RH; Axle Assembly
- Position: Passenger Side
- Replaces: 43410-30020
Lexus Front Drive Shaft Assembly
Part Number: 43430-60082$290.70 MSRP: $429.49You Save: $138.79 (33%)Product Specifications- Other Name: Shaft Assy, Front Drive, LH; Axle Assembly, Axle Shaft Assembly
- Position: Front
- Replaces: 43430-60081
Lexus Front Drive Shaft Assembly
Part Number: 43430-60083$342.23 MSRP: $474.38You Save: $132.15 (28%)Product Specifications- Other Name: SHAFT ASSY, FR DRIVE
- Position: Front
Lexus Front Drive Shaft Assembly
Part Number: 43410-30040$783.71 MSRP: $1086.33You Save: $302.62 (28%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Shaft Assy, Front Drive, RH; Axle Assembly
- Position: Passenger Side
Lexus Front Drive Shaft Assembly
Part Number: 43420-30021$690.11 MSRP: $956.58You Save: $266.47 (28%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Shaft Assy, Front Drive, LH; Axle Assembly
- Position: Driver Side
- Replaces: 43420-30020
Lexus Shaft Assy, Front Drive, RH
Part Number: 43410-0W240$737.60 MSRP: $1048.95You Save: $311.35 (30%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Axle Assembly
- Position: Passenger Side
| Page 1 of 20 |Next >
1-20 of 385 Results
Lexus Axle Shaft Parts Questions & Experts Answers
- Q: What is the role of the axle shaft and CV joints in the transaxle system on Lexus ES300?A:The power from the transaxle is transmitted to the wheels through a pair of axle shafts, with the inner end of each axle shaft directly splined to the differential side gears. The outer ends of the axle shafts are splined to the axle hubs and locked in place by a large nut. The left side axle shaft is shorter, while the right side axle shaft is longer and equipped with an intermediate shaft supported by a bearing support. The inner ends of the axle shafts have sliding constant velocity joints capable of both angular and axial motion, while the outer joints are capable of angular but not axial movement. The boots should be inspected periodically for damage and leaks, and torn CV Boot must be replaced immediately to prevent damage. Symptoms of worn or damaged CV joints include clicking noises in turns, clunking when accelerating after coasting, and vibration at highway speeds. Checking for wear in the CV joints and axle shafts involves rotating each axle in both directions while feeling for play indicating worn splines or sloppy CV joints, as well as checking for cracks, dents, and distortion in the axle shafts.
- Q: How to remove and install a drive axle shaft on the Lexus ES350?A:Before starting this procedure, obtain a new axle shaft/hub nut. Begin by disconnecting the cable from the negative terminal of the battery. Loosen the front wheel lug nuts, raise the vehicle, and support it securely on jackstands before removing the wheel. Unstake and remove the axle shaft/hub nut, bracing a prybar between two wheel studs to prevent the hub from turning. Disconnect the stabilizer bar link at the suspension strut and the tie-rod end from the steering knuckle, then remove the nuts and bolt securing the balljoint to the control arm, prying the control arm down to separate the components. Disconnect the ABS wheel speed sensor from the steering knuckle and the ABS harness clamp at the suspension strut. To loosen the axle shaft from the hub splines, tap the end of the axle shaft with a soft-faced hammer or brass punch; if stuck, it may be necessary to remove the brake disc and use a two-jaw puller. Place a drain pan underneath the transaxle to catch any leaking lubricant. If applicable, remove the case protector over the inner CV joint. Pull out on the steering knuckle to detach the axle shaft from the hub, taking care to protect your hands from the sharp ring around the CV joint. For right axle shaft assemblies, remove the center bearing lock bolt and snap-ring, then pull the splined inner end of the intermediate shaft out of the differential side gear. For the left axle shaft, carefully pry the inner CV joint out of the transaxle. If necessary to move the vehicle while the axle shaft is out, place a large bolt with washers through the hub and tighten securely. Installation is the reverse of removal, ensuring to push the left axle shaft sharply inward to seat the retaining ring, tighten the center bearing lock bolt for the right axle shaft/intermediate shaft assembly, use a new axle shaft/hub nut and stake it, install the wheel and lug nuts, lower the vehicle, and tighten the lug nuts. Finally, check the transaxle lubricant and add if necessary, and check the intermediate shaft bearing for smooth operation, replacing it if it feels rough or sticky.
