Question 1

How to remove and install a front shock absorber assembly on Lexus ES300?

Accepted Answer

Loosen the wheel lug nuts, raise the vehicle and support it securely on jackstands. Remove the wheel. Support the control arm with a floor jack. Remove the brake hose bracket from the strut. If the vehicle is equipped with ABS, detach the speed sensor wiring harness from the strut by removing the clamp bracket bolt. On models equipped with electronic modulated suspension, remove the shock absorber cap and disconnect the shock absorber wiring harness. If the strut is to be disassembled, loosen, but do not remove, the damper shaft nut. Remove the strut-to-knuckle nuts and knock the bolts out with a hammer and punch. Separate the strut from the steering knuckle. Be careful not to overextend the inner CV joint. Also, don't let the steering knuckle fall outward, as the brake hose could be damaged. Support the strut and spring assembly with one hand and remove the three strut-to-shock tower nuts. On models equipped with electronic modulated suspension, loosen but do not remove, the nut in the center of the strut. Remove the assembly out from the fenderwell. Check the strut body for leaking fluid, dents, cracks and other obvious damage which would warrant repair or replacement. Check the coil spring for chips or cracks in the spring coating. Inspect the spring seat for cuts, hardness and general deterioration. If any undesirable conditions exist, proceed to the strut disassembly procedure. Guide the strut assembly up into the fenderwell and insert the three upper mounting studs through the holes in the shock tower. Once the three studs protrude from the shock tower, install the nuts so the strut won't fall back through. Slide the steering knuckle into the strut flange and insert the two bolts. Install the nuts and tighten them to the torque. Reattach the brake hose bracket to the strut. If the vehicle is equipped with ABS, install the speed sensor wiring harness bracket. Install the wheel and lug nuts, then lower the vehicle and tighten the lug nuts to the torque. Tighten the three upper mounting nuts to the torque. If you're working on a model equipped with electronic modulated suspension and the strut had been disassembled, tighten the nut in the center of the strut to the torque. Connect the electrical connector and install cap.

Question 2

How to remove or replace rear Shock Absorber on Lexus ES350?

Accepted Answer

When removing or replacing rear suspension arms, loosely tighten all bolts. Move the suspension to its normal ride-height angle and position, then fully tighten the bolts. Remove the rear seat and package tray trim panel. Loosen the rear wheel lug nuts, raise the rear of the vehicle, and support it securely on jackstands. Remove the wheel. Remove the flexible hose and ABS speed sensor from the shock absorber. Detach the brake hose from the strut. Detach the ABS sensor wire from the strut. On models equipped with electronic modulated suspension, remove the clip and clamp and disconnect the shock absorber wiring harness. Disconnect the stabilizer bar link from the strut. Support the axle carrier with a floor jack. Loosen the strut-to-axle carrier bolt nuts. Remove the three upper strut-to-body mounting nuts. On models equipped with electronic modulated suspension, loosen but do not remove the damper shaft nut. Remove the assembly from the fender well. Lower the axle carrier with the jack and remove the two strut-to-axle carrier bolts. Remove the strut assembly. Maneuver the assembly up into the fender well and insert the mounting studs through the holes in the body. Install the nuts, but don't tighten them yet. Push the axle carrier into the strut lower bracket and install the bolts and nuts, tightening them to the torque. Connect the stabilizer bar link to the strut bracket. Attach the brake hose bracket to the strut. Attach the ABS wire to the strut. Install the wheel and lug nuts, lower the vehicle, and tighten the lug nuts to the torque. Tighten the three strut upper mounting nuts to the torque. If working on a model equipped with electronic modulated suspension and the strut has been disassembled, tighten the strut center nut to the torque. Connect the electrical connector. Install the package tray trim and seat.

Question 3

How to remove and install a front shock absorber on Lexus RX350?

Accepted Answer

Loosen the wheel lug nuts, raise the vehicle, and support it securely on jackstands before removing the wheel and supporting the control arm with a floor jack. Disconnect the stabilizer bar link from the strut and remove the brake hose bracket along with the wheel speed sensor wiring harness from the strut. Mark the position of the steering knuckle to the strut to help preserve the camber alignment adjustment, then remove the strut-to-knuckle nuts and knock the bolts out with a hammer and punch. Carefully separate the strut from the steering knuckle, avoiding overextension of the inner CV joint and preventing the steering knuckle from falling outward to avoid damaging the brake hose. If disassembling the strut, loosen the damper shaft nut without removing it. For 2004 and later Lexus models, remove the panels on the cowl to access the top of the struts, and for 2008 and later Highlander models, remove the windshield wiper arms and motor, side seals, and plastic cowl below the wiper motor assembly. For Lexus models equipped with electronic modulated air suspension, remove the shock absorber cap and detach the airline fitting from the top of the strut. Support the strut and spring assembly with one hand or have an assistant hold it while removing the three strut-to-shock tower nuts, then carefully remove the assembly from the fender well, noting that some models have a strut brace that can be removed without taking out the struts. Inspect the strut body for leaking fluid, dents, cracks, and other damage, and check the coil spring for chips or cracks in the coating, as well as the spring seal for cuts and deterioration. If any issues are found, proceed to disassemble the strut, and for Lexus models with modulated air suspension, replace the strut assembly if faulty. To install, guide the strut assembly into the fenderwell, insert the three upper mounting studs through the shock tower holes, and install the nuts to secure the strut. Slide the steering knuckle into the strut flange, insert the two bolts, match the previously marked position of the strut to the steering knuckle, and tighten them to the specified torque. Reattach the brake hose bracket and the wheel speed sensor wiring harness bracket, then install the wheel and lug nuts, lower the vehicle, and tighten the lug nuts to the specified torque. Finally, tighten the three upper mounting nuts to the specified torque and, if applicable, attach the air-line to the top of the strut before installing the cap.

Genuine Lexus Shock Absorber

920 Shock Absorbers found

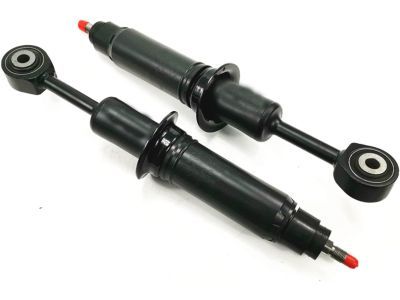

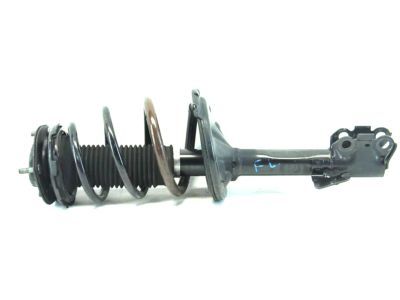

Lexus Front Shock Absorber Assembly Left Hand

Lexus Front Shock Absorber Assembly Left Hand

Lexus Front Shock Absorber Assembly Right Hand

Lexus Front Shock Absorber Assembly Left Hand

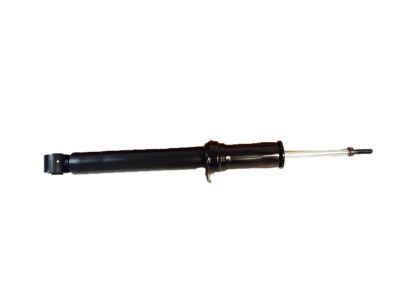

Lexus Rear Shock Absorber Assembly Left Hand

Lexus Rear Shock Absorber Assembly Left Hand

Lexus Shock Absorber Assembly Front Left Hand

Lexus Shock Absorber Assembly Front Left Hand

Lexus Front Shock Absorber Assembly Left Hand

Lexus Rear Shock Absorber Assembly Left Hand

Lexus Shock Absorber Assembly Rear Left Hand

Lexus Front Shock Absorber Assembly Left Hand

Lexus Front Shock Absorber Assembly Right Hand

Lexus Front Shock Absorber Assembly Left Hand

Lexus Shock Absorber Assembly Front Right Hand

Lexus Front Shock Absorber Assembly Right Hand

Lexus Front Shock Absorber Assembly Left Hand

Lexus Front Shock Absorber Assembly Right Hand

Lexus Shock Absorber Assembly Rear Left Hand

Lexus Shock Absorber Assembly Front Right Hand
