How to remove and install a front strut on Lexus RX330?

Loosen the wheel lug nuts, raise the vehicle, and support it securely on jackstands before removing the wheel and supporting the control arm with a floor jack. Disconnect the stabilizer bar link from the strut and remove the brake hose bracket along with the wheel speed sensor wiring harness from the strut. Mark the position of the steering knuckle to the strut to help preserve the camber alignment adjustment, then remove the strut-to-knuckle nuts and knock the bolts out with a hammer and punch. Carefully separate the strut from the steering knuckle, avoiding overextension of the inner CV joint and preventing the steering knuckle from falling outward to avoid damaging the brake hose. If disassembling the strut, loosen the damper shaft nut without removing it. For 2004 and later Lexus models, remove the panels on the cowl to access the top of the struts, and for 2008 and later Highlander models, remove the windshield wiper arms and motor, side seals, and plastic cowl below the wiper motor assembly. For Lexus models equipped with electronic modulated air suspension, remove the shock absorber cap and detach the airline fitting from the top of the strut. Support the strut and spring assembly with one hand or have an assistant hold it while removing the three strut-to-shock tower nuts, then carefully remove the assembly from the fender well, noting that some models have a strut brace that can be removed without taking out the struts. Inspect the strut body for leaking fluid, dents, cracks, and other damage, and check the coil spring for chips or cracks in the coating, as well as the spring seal for cuts and deterioration. If any issues are found, proceed to disassemble the strut, and for Lexus models with modulated air suspension, replace the strut assembly if faulty. To install, guide the strut assembly into the fenderwell, insert the three upper mounting studs through the shock tower holes, and install the nuts to secure the strut. Slide the steering knuckle into the strut flange, insert the two bolts, match the previously marked position of the strut to the steering knuckle, and tighten them to the specified torque. Reattach the brake hose bracket and the wheel speed sensor wiring harness bracket, then install the wheel and lug nuts, lower the vehicle, and tighten the lug nuts to the specified torque. Finally, tighten the three upper mounting nuts to the specified torque and, if applicable, attach the air-line to the top of the strut before installing the cap.

Genuine Lexus RX330 Shock Absorber

Suspension Shock Absorber

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Shock Absorbers found

View related parts

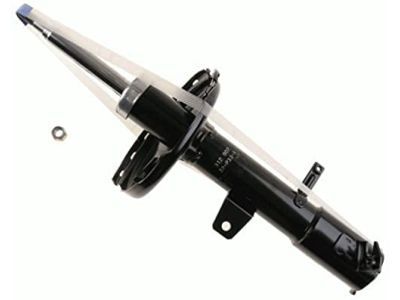

Lexus RX330 Front Shock Absorber Assembly Right Hand
Part Number: 48510-A9360
$197.99 MSRP: $269.94
You Save: $71.95 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assy, Shock, Front RH; Strut
- Manufacturer Note: MARK 48510-0E010
- Position: Front Passenger Side
- Replaces: 48510-49445
- Warranty: This genuine part is guaranteed by Lexus's factory warranty.
Fits the following Vehicles:
- 2004-2006 Lexus RX330 | STD | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; GSU30L-CWAGKA, GSU35L-CWAGKA, MCU33L-CWAGKA, MCU38L-CWAGKA
View related parts
Lexus RX330 Front Shock Absorber Assembly Left Hand
Part Number: 48520-A9220
$227.76 MSRP: $310.53
You Save: $82.77 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assy, Shock, Front LH; Strut
- Manufacturer Note: MARK 48520-0E010
- Position: Front Driver Side
- Replaces: 48520-49555
- Warranty: This genuine part is guaranteed by Lexus's factory warranty.
Fits the following Vehicles:
- 2004-2006 Lexus RX330 | STD | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; GSU30L-CWAGKA, GSU35L-CWAGKA, MCU33L-CWAGKA, MCU38L-CWAGKA
View related parts
Lexus RX330 Absorber Assy, Shock, Rear LH
Part Number: 48540-49215
$261.71 MSRP: $362.76
You Save: $101.05 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Strut
- Manufacturer Note: MARK 48540-48170
- Position: Rear Driver Side
- Replaces: 48540-A9160
- Warranty: This genuine part is guaranteed by Lexus's factory warranty.
Fits the following Vehicles:
- 2004-2006 Lexus RX330 | STD | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; GSU35L-AWAGKA, 3MZFE; GSU35L-CWAGKA, MCU38L-AWAGKA, MCU38L-CWAGKA
View related parts
Lexus RX330 Absorber Assy, Shock, Rear LH
Part Number: 48540-A9150
$266.87 MSRP: $369.92
You Save: $103.05 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Strut
- Manufacturer Note: MARK 48540-0E010
- Position: Rear Driver Side
- Replaces: 48540-49185
- Warranty: This genuine part is guaranteed by Lexus's factory warranty.
Fits the following Vehicles:
- 2004-2006 Lexus RX330 | STD | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; GSU30L-AWAGKA, 3MZFE; GSU30L-CWAGKA, MCU33L-AWAGKA, MCU33L-CWAGKA
View related parts
Lexus RX330 Absorber Assy, Shock, Rear RH
Part Number: 48530-A9210
$268.51 MSRP: $366.09
You Save: $97.58 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: MARK 48530-0E020
- Position: Rear Passenger Side
- Replaced by: 48530-49325
- Warranty: This genuine part is guaranteed by Lexus's factory warranty.
Fits the following Vehicles:
- 2004-2006 Lexus RX330 | STD | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; GSU35L-CWAGKA, MCU38L-CWAGKA
View related parts
Lexus RX330 Front Shock Absorber Assembly Right Hand
Part Number: 48510-49445
$182.50 MSRP: $246.80
You Save: $64.30 (27%)
ADD TO CART
Product Specifications
- Other Name: Absorber Assy, Shock, Front RH
- Manufacturer Note: MARK 48510-48090
- Position: Front Passenger Side
- Replaced by: 48510-49825
- Warranty: This genuine part is guaranteed by Lexus's factory warranty.
Fits the following Vehicles:
- 2004-2006 Lexus RX330 | STD | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; GSU30L-AWAGKA, GSU35L-AWAGKA, MCU33L-AWAGKA, MCU38L-AWAGKA
View related parts
Lexus RX330 Front Shock Absorber Assembly Left Hand
Part Number: 48520-49555
$179.31 MSRP: $242.49
You Save: $63.18 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assy, Shock, Front LH
- Manufacturer Note: MARK 48520-48090
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Lexus's factory warranty.
Fits the following Vehicles:
- 2004-2006 Lexus RX330 | STD | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; GSU30L-AWAGKA, GSU35L-AWAGKA, MCU33L-AWAGKA, MCU38L-AWAGKA
View related parts
Lexus RX330 Absorber Assy, Shock, Rear RH
Part Number: 48530-A9200
$293.76 MSRP: $400.52
You Save: $106.76 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: MARK 48530-0E010
- Position: Rear Passenger Side
- Replaced by: 48530-49295
- Warranty: This genuine part is guaranteed by Lexus's factory warranty.
Fits the following Vehicles:
- 2004-2006 Lexus RX330 | STD | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; GSU30L-CWAGKA, MCU33L-CWAGKA
View related parts
Lexus RX330 Absorber Assy, Shock, Rear RH
Part Number: 48530-49325
$264.11 MSRP: $366.09
You Save: $101.98 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Strut
- Manufacturer Note: MARK 48530-48170
- Position: Rear Passenger Side
- Replaces: 48530-A9210
- Warranty: This genuine part is guaranteed by Lexus's factory warranty.
Fits the following Vehicles:
- 2004-2006 Lexus RX330 | STD | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; GSU35L-AWAGKA, 3MZFE; GSU35L-CWAGKA, MCU38L-AWAGKA, MCU38L-CWAGKA
View related parts
Lexus RX330 Absorber Assy, Shock, Rear RH
Part Number: 48530-49295
$288.95 MSRP: $400.52
You Save: $111.57 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Strut
- Manufacturer Note: MARK 48530-48140
- Position: Rear Passenger Side
- Replaces: 48530-A9200
- Warranty: This genuine part is guaranteed by Lexus's factory warranty.
Fits the following Vehicles:
- 2004-2006 Lexus RX330 | STD | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; GSU30L-AWAGKA, 3MZFE; GSU30L-CWAGKA, MCU33L-AWAGKA, MCU33L-CWAGKA
View related parts
Lexus RX330 Absorber Assy, Shock, Rear LH
Part Number: 48540-A9160
$266.07 MSRP: $362.76
You Save: $96.69 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: MARK 48540-0E020
- Position: Rear Driver Side
- Replaced by: 48540-49215
- Warranty: This genuine part is guaranteed by Lexus's factory warranty.
Fits the following Vehicles:
- 2004-2006 Lexus RX330 | STD | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; GSU35L-CWAGKA, MCU38L-CWAGKA
View related parts
Lexus RX330 Absorber Assy, Shock, Rear LH
Part Number: 48540-49185
$271.32 MSRP: $369.92
You Save: $98.60 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: MARK 48540-48140
- Position: Rear Driver Side
- Replaced by: 48540-A9150
- Warranty: This genuine part is guaranteed by Lexus's factory warranty.
Fits the following Vehicles:
- 2004-2006 Lexus RX330 | STD | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; GSU30L-AWAGKA, MCU33L-AWAGKA

Lexus RX330 Shock Absorber

Lexus RX330 Shock Absorber converts the up-and-down movement of the wheel into controlled heat inside pressurized fluid, keeping the SUV smooth and planted. As the metering valve cycles thousands of times, wear presents itself as harsh bumps, nose dive, body roll, or cupped tires, which are certain signs that the Shock Absorber is fading. Factory twin tube hydraulic units are comfort-oriented, but spirited driving can cause foamed oil, reduced damping, and allow the Lexus to be too lean. Adding nitrogen produces a gas charged twin tube which is more resistant to foaming, and moving to a monotube Shock Absorber will bring a larger piston, single chamber, and floating gas pocket for stronger, fade-free control. Both choices are attached by upper strut mounts through which the spring is carried, and worn mounts can squeak or tug the wheel or throw off RX330 alignment, spotlighting the Shock Absorber as an important link. Torn bellows allow grit to scar the shaft, and bottom-out bumpers can split, so switching out a tired Shock Absorber at around 50,000 miles will avoid seal failure and keep the Lexus ride tight. Fresh monotubes provide the RX330 with flatter cornering, firmer braking stance, and cooler operation without killing daily comfort. Matched up with healthy springs, the ultimate Lexus RX330 package offers steady grip and a cabin without unnecessary bouncing.

Should you need to purchase new auto parts for your vehicle, we strongly suggest you consider the genuine Lexus RX330 Shock Absorber available on LexusPartsNow.com. Our OEM Lexus RX330 Shock Absorber come with the reassurance of the manufacturer's warranty, a hassle-free return policy, and speedy delivery service, all at affordable prices online. Feel free to shop with confidence!

Lexus RX330 Shock Absorber Parts Questions & Experts Answers

Front Shock Absorber Assembly Left Hand
48520-A9220
Q: How to remove and install a front strut on Lexus RX330?
A:
Loosen the wheel lug nuts, raise the vehicle, and support it securely on jackstands before removing the wheel and supporting the Control Arm with a floor jack. Disconnect the stabilizer bar link from the strut and remove the brake hose bracket along with the wheel speed sensor wiring harness from the strut. Mark the position of the Steering Knuckle to the strut to help preserve the camber alignment adjustment, then remove the strut-to-knuckle nuts and knock the bolts out with a hammer and punch. Carefully separate the strut from the steering knuckle, avoiding overextension of the inner CV joint and preventing the steering knuckle from falling outward to avoid damaging the brake hose. If disassembling the strut, loosen the damper shaft nut without removing it. For 2004 and later Lexus models, remove the panels on the cowl to access the top of the struts, and for 2008 and later Highlander models, remove the windshield wiper arms and motor, side seals, and plastic cowl below the wiper motor assembly. For Lexus models equipped with electronic modulated air suspension, remove the shock absorber cap and detach the airline fitting from the top of the strut. Support the strut and spring assembly with one hand or have an assistant hold it while removing the three strut-to-shock tower nuts, then carefully remove the assembly from the fender well, noting that some models have a strut brace that can be removed without taking out the struts. Inspect the strut body for leaking fluid, dents, cracks, and other damage, and check the coil spring for chips or cracks in the coating, as well as the spring seal for cuts and deterioration. If any issues are found, proceed to disassemble the strut, and for Lexus models with modulated air suspension, replace the strut assembly if faulty. To install, guide the strut assembly into the fenderwell, insert the three upper mounting studs through the shock tower holes, and install the nuts to secure the strut. Slide the steering knuckle into the strut flange, insert the two bolts, match the previously marked position of the strut to the steering knuckle, and tighten them to the specified torque. Reattach the brake hose bracket and the wheel speed sensor wiring harness bracket, then install the wheel and lug nuts, lower the vehicle, and tighten the lug nuts to the specified torque. Finally, tighten the three upper mounting nuts to the specified torque and, if applicable, attach the air-line to the top of the strut before installing the cap.
